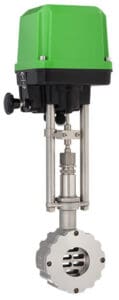

Schubert & Salzer – Type 5030 Segment Disc Motor Valve

Need help selecting your product?

Send an Email Call (804) 550-7143

Overview

The Schubert & Salzer Type 5030 is a segment disc motor valve designed for precise control of liquids and steam, including media contaminated by particulate matter. Its robust wafer-style body mounts directly between standard flanges, offering a compact, space-saving installation footprint without sacrificing flow capacity or control performance.

Available in sizes from 1″ through 12″ and rated for operating pressures up to 363 psi (1″–6″), the Type 5030 delivers high Cv values, low-noise operation, and bi-directional flow capability. It is compatible with control or 3-point actuators and offers optional ATEX non-electrical certification for use in hazardous area classifications.

Features & Benefits

Segment disc design handles particulate-laden media without clogging — suitable for demanding process fluids
Bi-directional flow — eliminates need to specify flow direction during installation
Wafer-style body — compact, space-saving design mounts between standard DIN EN 1092-1 Form B flanges
High Cv values — delivers strong flow capacity for effective process control
Low-noise operation — reduces acoustic impact in sensitive process environments
Robust construction — stainless steel 316Ti / CF8M or carbon steel A738 body materials for long service life
Optional ATEX non-electrical certification — available for hazardous area installations (II 2G and II 2D classifications)
Multiple actuator thrust options — 2 kN, 5 kN (on/off); 4.5 kN, 18 kN, 20 kN, 25 kN (control) to match application torque requirements
Wide voltage compatibility — 230 VAC, 115 VAC, 24 VAC, 400 V, and 24 VDC actuator options available

Technical Specifications

Valve type: Segment disc motor valve
Size range: 1″ – 12″
Pressure rating: Up to 363 psi (1″–6″); up to 232 psi (10″–12″); other ratings on request
Media temperature range: -76 °F to 428 °F (depending on version)
Body materials: Stainless steel 316Ti / CF8M; Carbon steel A738
Connection type: Wafer design for flanges per DIN EN 1092-1 Form B
Actuator type: Control actuators or 3-point actuators
Actuator thrust (on/off): 2 kN, 5 kN
Actuator thrust (control): 4.5 kN, 18 kN, 20 kN, 25 kN
Actuator voltage: 230 VAC, 115 VAC, 24 VAC, 400 V, 24 VDC
ATEX non-electrical (optional): II 2G Ex h IIC T6…T2 X Gb; II 2D Ex h IIIC 85 °C…220 °C X Db
Approvals: EC Declaration of Conformity; UKCA Declaration of Conformity

Applications

Liquid flow control in industrial process systems
Steam control in heating, energy, and utility systems
Particulate-laden or contaminated media handling
Chemical processing and water treatment
Food & beverage processing
Pulp & paper and textile industry fluid control
Hazardous area installations requiring ATEX-rated equipment
Retrofit and space-constrained installations requiring wafer-body valves

Type 5030 Accessories

Limit Switch – Provides open/closed end position feedback for remote monitoring and interlock systems
Position Feedback – Continuous analog position signal for integration with control systems
Fail Safe Feature – Optional fail-safe actuator configuration for defined valve position on loss of power or signal
