Fireye Flame Monitor & MicroM Display – ED510

Need help selecting your product?

Send an Email Call (804) 550-7143
$1,679 Vendor: Fireye

Overview

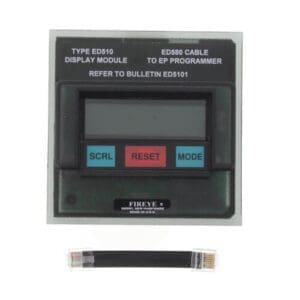

The Fireye ED510 Display Module is a backlit operator interface for Flame-Monitor® and MicroM systems. It provides clear alphanumeric readouts, continuous burner status updates, diagnostic messages, and fault annunciation. The ED510 simplifies commissioning, troubleshooting, and monitoring of burner management systems with both direct-mount and remote-mount options.

Applications & Benefits

  • Backlit LCD Display: Two-line, sixteen-character backlit LCD screen for clear visibility in all lighting conditions.
  • Continuous Status Updates: Provides real-time burner operating status, including first-out annunciation for lockout conditions.
  • User-Friendly Keypad: Three-key tactile dome keypad allows access to historical burner information, review of the last six lockout conditions (with cycle and hour timestamps), assignment of messages for the E300 expansion module, and viewing of diagnostic messages.
  • Direct Mounting: Designed to mount directly onto the front face of EP style programmers.
  • Easy Connectivity: RJ-style connector provides simple connection to EP and EPD programmers.
  • Remote Display Option: Compatible with EP and EPD programmers and MicroM systems using a standard DIN-sized opening and remote mounting kit (see Bulletin E-8002).
  • Weatherproof Housing: NEMA 4 weatherproof housing available when used with the remote mounting kit (129-145-1, -2).

Documentation

Manuals
Technical Instructions
