Fireye Controller – E110
Need help selecting your product?
Starts at $2,321
Vendor: Fireye
Overview
The Fireye Flame-Monitor™ E-Series Flame Safeguard Controls provide safe and reliable burner sequencing, ignition, and flame monitoring protection for automatically ignited oil, gas, and combination fuel burners. These systems are widely used in commercial and industrial applications requiring dependable flame supervision and diagnostics.
Applications & Benefits
- Ensures safe start-up, operation, and shutdown of burners through automatic sequencing.
- Provides continuous flame monitoring with fault annunciation and lockout history.
- Compatible with a wide range of Fireye flame amplifiers and scanners for UV, IR, or FR flame detection.
- Expandable with E300/E320 modules for communication, data logging, and enhanced system functionality.
- Available in 120 VAC (E110) and 220 VAC (E120) models with agency approvals.
Series Models

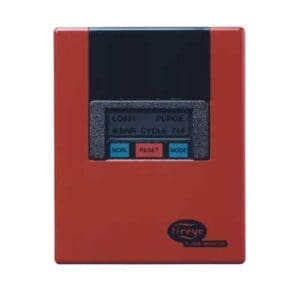

- E110 – Control consisting of EB700, 48-1836, EC600. Operates on 120 VAC. Display ordered separately. UL, FM, UL/c Approved.
- E120 – Same as E110 except operates on 220 VAC, consisting of EB701, 48-1836, EC600. FM Approval only.
Associated Components
Wiring Base
- 60-1386-2 – Surface Mount
- 60-1466-2 – Panel Mount
Amplifier Selection
- EUV1 – Standard UV amplifier (for UV1A, UV2, UV8A, 45UV3, UV90).
- EUVS4 – Self-check UV amplifier (for 45UV5-1007, 1008, 1009).
- E1R1 – Autocheck infrared amplifier (for 48PT2).
- E1R2 – Autocheck IR amplifier – high sensitivity (for 48PT2).
- E1R3 – Autocheck IR amplifier – no fog rejection spray circuitry (for 48PT2).
- ERT1 – Rectification amplifier (for 69ND1 flame rods).
Scanner Selection
- 48PT2 Series – Infrared scanners, available in straight or 90° mount with various cable lengths.
- UV1A / UV8A / UV2 / UV90 – Ultraviolet scanners for non-self-check applications.
- 45UV5 Series – Self-check UV scanners for use with EUVS4 amplifier.
- 69ND1 Series Flame Rods – Available in 12”, 18”, and 24” lengths.
Display & Accessories
- ED510 – Display Module (2-line x 16-character LCD display).
- E300 / E320 Expansion Modules – Add communication and enhanced features.
- EC485 / UC485 – Communication converters (RS232 to RS485 or USB).
- ED600 / ED610 – Multi-port adapters for system expansion.
- IT1000 – Wireless communication monitor system.
Documentation
Application Diagrams
Manuals
- E-1101 – E110 Flame Monitor (English)
- E-1201 – E120 Flame Monitor & EB701 Chassis (English)
- EAMP1 – Flame Monitor Amplifier Modules E1R1, EUV1, ERT1, EUVS4, EDC1, EDC2 (English)
- E-3001 – Flame Monitor E300 Expansion Module (English)
- E-3201 – Flame Monitor E320 Expansion Module (English)
- EC4851 – RS232 RS485 Converter EC485 (English)
- UC-4851 – UC485 Optically Isolated USB to RS422 RS485 Converter (English)
- CP-47 – Test Unit 57AV4 (English)
- EP-1601add – Programmer Modules EP177 (English)
- ED-5101 – ED510 Display Module (English)
- EP-1231 – Programmer Modules EP100S, EP200S, EP300S (English)
- EP-1601 – Programmer Modules EP160, EP161, EP163, EP165, EP166, EP174, EP177 (English)
- EP-2601 – Programmer Modules EP260, EP265, EP270 (English)
- EP-3801 – Programmer Modules EP380, EP381, EP382, EP383, EP390 (English)
- E-8002 – Flame Monitor System Accessories (English)
