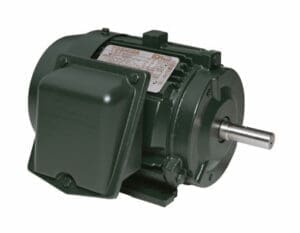

EQP Global® SD – Severe Duty Low-Voltage Motors
The Toshiba EQP Global SD is a NEMA Premium® efficiency, severe-duty motor line engineered for harsh industrial environments. With a rugged cast-iron TEFC design, oversized bearings, high torque output, and inverter-duty windings, this series delivers long life and reliable operation under the most demanding conditions.
Key Features & Benefits
- Severe-duty construction: Cast-iron frame, brackets, and terminal box with Totally Enclosed Fan Cooled (TEFC) enclosure.
- Ingress protection: IP54 – IP65 depending on frame size; resistant to dust, dirt, and water jets.
- Oversized 300-series bearings: Heavy-duty drive-end and non-drive-end bearings extend lifespan up to 10× compared to standard designs.
- Low vibration: Exceeds NEMA MG1 vibration limits to protect coupled equipment and extend mechanical life.
- Wide thermal margin: Class H insulation with Class B temperature rise; C5 inter-lamination steel withstands > 1,000 °F burnout temperatures.
- High torque: Meets or exceeds NEMA Design B torque values for reliable starts under load and voltage sag conditions.
- ASD-ready: Designed for adjustable-speed drives (ASD/VFD) with windings rated for 2,000 V spikes in 0.1 µs per NEMA MG1 Part 31.
- Extended warranty: Standard 36-month warranty (extended when paired with Toshiba drives).
Ratings & Options
- Horsepower: 0.5 – 800 HP
- Speeds: 900 / 1200 / 1800 / 3600 RPM (60 Hz)
- Voltages: 230/460 V (dual), 460 V, 575 V
- Frames: 56 – 5811 (NEMA T frames)
- Mounting: Footed, C-Face Footed, C-Face Footless (F-2 field-reversible on most frames)
- Enclosures: TEFC (Totally Enclosed Fan Cooled)
Common Model Variants
Below are commonly stocked and specified EQP Global SD models listed across distributor and OEM catalogs:
| Model Number | HP | Speed (RPM) | Voltage | Frame | Description |
|---|---|---|---|---|---|
| 0014SDSR41A-P | 1 | 1800 | 230/460 V | 143T | Standard TEFC NEMA Premium Severe Duty |
| 0016SDSR41A-P | 1 | 1200 | 230/460 V | 145T | Severe Duty – Low Speed Version |
| 0024SDSR41A-P | 2 | 1800 | 230/460 V | 145T | General Purpose Severe Duty |
| 0034SDSR41A-P | 3 | 1800 | 230/460 V | 182T | Standard Industrial Duty Model |
| 0054SDSR41A-P | 5 | 1800 | 230/460 V | 184T | Heavy-Duty Fan Cooled Motor |
| 0104SDSR41A-P | 10 | 1800 | 230/460 V | 215T | High-Efficiency Severe Duty |
| 0154SDSR41A-P | 15 | 1800 | 230/460 V | 254T | Industrial Fan / Pump Motor |
