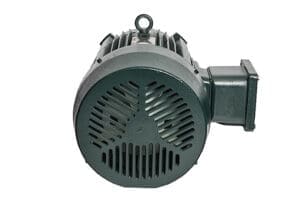

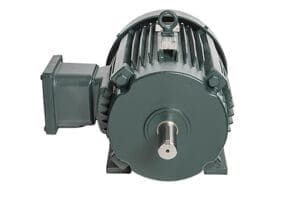

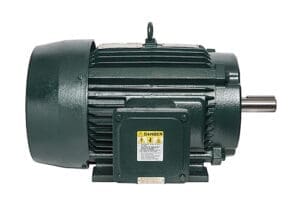

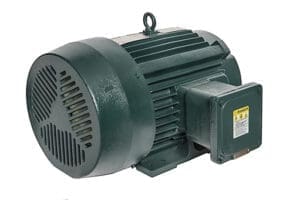

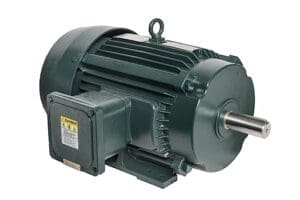

EQP Global® XP – Explosion Proof Motors

Toshiba EQP Global XP motors are engineered for hazardous locations. This TEFC (Totally Enclosed Fan Cooled) series is built to contain an internal explosion and prevent the ignition of surrounding gases or vapors. With rugged cast-iron construction, premium efficiency, and inverter-duty windings, EQP Global XP delivers reliable performance in severe industrial environments.

Key Features & Benefits

  • Explosion proof design: Enclosure contains internal ignition and helps prevent flame propagation into the surrounding atmosphere.
  • UL Listed / CSA Certified: Factory-tested and certified for hazardous locations (see brochure for specific classifications and temperature codes).
  • Severe-duty build: Cast-iron frame, end brackets, conduit box, and fan cover for high mechanical strength.
  • Premium efficiency: NEMA Premium® efficiency levels reduce energy use and heat rise.
  • ASD/VFD ready: Insulation system designed for inverter duty per NEMA MG1 Part 31 guidance.
  • Long service life: Oversized bearings, optimized ventilation, and corrosion-resistant finishes for demanding environments.

Ratings & Options

  • Horsepower: broad range from 1HP to 350 HP (see brochure/cert tables)
  • Speeds (60 Hz): 900 / 1200 / 1800 / 3600 RPM (varies by model)
  • Voltages: 230/460 V dual, 460 V, 575 V (by rating)
  • Frames: NEMA T-frames with footed and C-face options (see brochure)
  • Enclosure: TEFC explosion-proof

Common Model Variants (examples)

Representative EQP Global XP catalog models (factory item pages shown for reference):

Model Number HP RPM Voltage Frame Description
0014XPEA44A-P 1 1800 230/460 V 143T Explosion-proof, footless
0022XPEA44A-P 2 3600 230/460 V 145T Explosion-proof, footless

Applications

Pumps, fans, compressors, mixers, and material handling equipment located in hazardous areas across oil & gas, chemical/petrochemical, mining & minerals, pharmaceuticals, and other industries requiring explosion-proof certified motors.

Documentation

Brochures / Data Sheets
  • Data Sheet
    – EQP Global XP Explosion Proof Brochure (factory)
  • Data Sheet
    – Toshiba Industrial Products Catalog
Installation & Operation
  • Data Sheet
    – EQP Global XP product page (factory downloads)
  • Data Sheet
    – LV 50 & 60 Hz Motor Installation & Operation Manual

Request a Quote

Send your hazardous location details (area classification & group, temperature code, HP, RPM, voltage, frame, mounting). We’ll configure the exact EQP Global XP motor for your application.
