Protego In-Line Detonation Flame Arrester -DR/ES
Need help selecting your product?
The PROTEGO DR/ES provides in-line detonation and deflagration protection in a compact, right-angle housing. An integrated shock absorber protects the FlameFilter® element, reduces maintenance, and helps minimize pressure loss in demanding gas safety applications.
Specifications & Materials
Explosion groups: IIA to IIB3. Operating range: up to 1.2 bar abs (17.4 psi) and 60 °C (140 °F) (higher ratings on request). Materials: carbon steel, stainless steel, or special alloys. Connections: EN 1092-1 Form B1 or ASME B16.5 Class 150 RF.
Design Variants

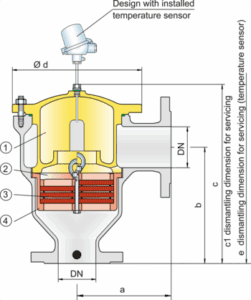

Base model, with integrated temperature sensor (-T), with heating jacket (-H), or combined (-H-T) for enhanced monitoring and protection.
Product Documentation
Flow Capacity Charts
Use the following TÜV-certified flow vs. pressure-drop charts to size your installation accurately (air/water under ISO 6358 reference conditions where applicable):
