Fireye Phoenix / Insight II UV Scanner Cable – 59-546 Series

Need help selecting your product?

Send an Email Call (804) 550-7143
Starting at $8 per foot Vendor: Fireye


Applications & Benefits

The Fireye 59-546 Series Cables are 8-conductor interconnection cables designed for use with InSight II and Phoenix flame scanners.
These cables are factory wired, available in multiple lengths, and rated for ITC-ER and PLTC-ER standards.
They provide durable and reliable connectivity in industrial combustion systems while supporting quick-disconnect installation.

Series Overview

The 59-546 Series includes a range of pre-assembled lengths to meet application needs, from short 3 meter (10 ft) runs to long 90 meter (295 ft) installations.
All versions are designed for secure scanner wiring and long service life in demanding industrial environments.

Model Options

  • 59-546: 8 conductor cable for Phoenix and InSight II scanner, rated for ITC-ER and PLTC-ER. Price per ft.

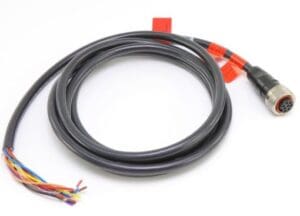

  • 59-546-3: Factory wired cable assembly, 3 meters / 10 ft.
  • 59-546-4: Factory wired cable assembly, 4 meters / 12 ft.
  • 59-546-6: Factory wired cable assembly, 6 meters / 20 ft.
  • 59-546-9: Factory wired cable assembly, 9 meters / 30 ft.
  • 59-546-12: Factory wired cable assembly, 12 meters / 40 ft.
  • 59-546-15: Factory wired cable assembly, 15 meters / 49 ft.
  • 59-546-18: Factory wired cable assembly, 18 meters / 59 ft.
  • 59-546-20: Factory wired cable assembly, 20 meters / 66 ft.
  • 59-546-24: Factory wired cable assembly, 24 meters / 79 ft.
  • 59-546-30: Factory wired cable assembly, 30 meters / 98 ft.
  • 59-546-45: Factory wired cable assembly, 45 meters / 148 ft.
  • 59-546-60: Factory wired cable assembly, 60 meters / 197 ft.
  • 59-546-90: Factory wired cable assembly, 90 meters / 295 ft.
