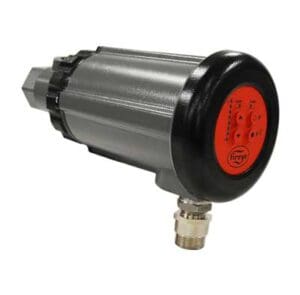

Fireye Phoenix II UV / IR Scanners – 85 UV / IR Series
Need help selecting your product?
Starting at $3,407
Vendor: Fireye
Applications & Benefits
The Fireye Phoenix Series II 85UV / 85IR integrated flame scanners provide reliable UV or IR flame monitoring for industrial burners.
Selectable FFRT, options for fiber-optic coupling and K3 filtering, and approvals (FM, UL/c, CE) make them a fit for refineries, power, waste incineration, steel, marine and more.
Series Overview
- 85IRF1A-1QD: IR, quick disconnect. Uses 59-546-xx cable; 60-2692/60-2919 flange. FM, UL/c, CE.
- 85IRF4A-1QDWR: IR, quick disconnect; for EDC1/EDC2/MEDC2/YB110DC/YB230DC amplifiers. Uses 59-546-xx; 60-2692/60-2919 flange.
- 85UVF1A-1QD: UV, quick disconnect. Uses 59-546-xx; 60-2692/60-2919 flange. FM, UL/c, CE.
- 85UVF1A-1QDK3: UV with K3 filter, quick disconnect. Uses 59-546-xx; 60-2692/60-2919 flange. FM, UL/c, CE.
- 85UVF4A-1QDK3WR: UV with K3 filter, quick disconnect; for direct-coupled amps. Uses 59-546-xx; 60-2692/60-2919 flange.
- 85UVF4A-1QDWR: UV, quick disconnect; for direct-coupled amps. Uses 59-546-xx; 60-2692/60-2919 flange.
- 85IRF1A-2QD: Fiber-optic IR, quick disconnect. Uses 59-546-xx; 61-7443 fiber assemblies. FM, UL/c, CE.
- 85IRF4A-2QDWR: Fiber-optic IR, quick disconnect; for direct-coupled amps. Uses 59-546-xx; 61-7443 fiber assemblies.
- 85UVF1A-2QD: Fiber-optic UV, quick disconnect. Uses 59-546-xx; 61-7442 fiber assemblies. FM, UL/c, CE.
- 85UVF1A-2QDK3: Fiber-optic UV with K3 filter. Uses 59-546-xx; 61-7442 fiber assemblies. FM, UL/c, CE.
- 85UVF4A-2QDK3WR: Fiber-optic UV with K3 filter; for direct-coupled amps. Uses 59-546-xx; 61-7442 fiber assemblies.
- 85UVF4A-2QDWR: Fiber-optic UV; for direct-coupled amps. Uses 59-546-xx; 61-7442 fiber assemblies.
- 85UVF1-1CEXK3SS / 85UVF1-1CEXSS: ATEX stainless housings (dual cable entries). CE. Not for sale in US.
Application Diagrams
- MF-00-2-000F-0-007-B – Coal Fired Power Stations
- MF-00-2-000F-0-015-C – Oil Refinery
- MF-00-2-000F-0-028-B – Sulfur Recovery Unit
- MF-00-2-000F-0-014-D – Industrial & Commercial Boiler
- MF-00-2-000F-0-027-B – Hazardous Waste Incinerator
- MF-00-2-000F-0-029-B – Municipal Solid Waste Incinerator
- MF-00-2-000F-0-016-C – Cement Kilns
- MF-00-2-000F-0-031-C – FLNG
- MF-00-2-000F-0-026-C – Steel Mills
- MF-00-2-000F-0-030-B – FPSO
