Fireye Multi Burner – MB600S Burner Control

Overview

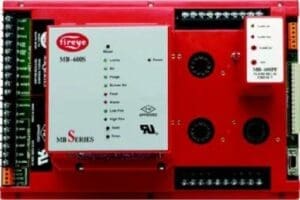

The Fireye MB600S Multi-Burner Control System provides advanced flame safeguard protection and burner sequencing for industrial multi-burner applications. Designed with modular components, the MB600S system offers flexibility, expandability, and communication options to meet the demands of complex combustion systems. It integrates motherboard, relay, logic, and power supply modules along with flame sensing options, expansion boards, and remote display capabilities.

Applications & Benefits

• Provides flame safeguard control for up to 8 burners in industrial environments.
• Expandable design with modular components for customized burner management.
• RS-232 and RS-485 communication options for integration with plant systems.
• Supports UV, self-check UV, and flame rectification sensors for flexible flame detection.
• Optional remote display for convenient monitoring and diagnostics.
• Rugged design suitable for heavy-duty multi-burner process applications.

Series Models & Components

• MB-600S – Multi-Burner Control System (120 VAC, 50/60 Hz) consisting of Motherboard (MB-600M), Relay Board (MB-600R), Logic Module (MB-600L), and Power Module (MB-600P). Includes 4 auxiliary inputs, purge modulation, and valve leak testing.
• MB-632S – Same as MB-600S but equipped with MB-632M motherboard for RS-232 communications.
• MB-685S – Same as MB-600S but equipped with MB-685M motherboard for RS-485 communications.
• MB-600M – Replacement motherboard module.
• MB-600R – Replacement relay module.
• MB-600L – Replacement logic module.
• MB-600P – Replacement power supply module.
• MB-600PF – Plug-in flame sensor module (UV/FR), housed in plastic case with mounting screws for expansion boards.
• MB-604E – Expansion board supporting up to 4 burners.
• MB-608E – Expansion board supporting up to 8 burners.
• 59-506-1 – 152 mm (6 in) cable for expansion board.
• 59-506-3 – 914 mm (36 in) cable for expansion board.
• 59-507-6 – 6 ft (1830 mm) cable for remote display.
• 59-507-10 – 10 ft (3050 mm) cable for remote display.
• MB510 – Remote display with keypad for convenient system monitoring.
