Fireye Micro M Amplifier Modules

Applications & Benefits

The Fireye MicroM Amplifier Modules are plug-in modules that provide signal processing and flame detection when paired with MicroM flame safeguard controls. With models covering ultraviolet (UV), infrared (IR), rectification (RT), cadmium sulfide (CD), and dry contact input (DC), the MicroM series offers flexibility for monitoring flame across a wide range of industrial combustion systems. These modules ensure safe burner supervision and are matched to specific scanner models for accurate flame detection.

Series Overview

• MECD1: Cadmium sulfide amplifier, 0.8 sec FFRT. Use with C554A scanner.
• MECD4: Cadmium sulfide amplifier, 3 sec FFRT. Use with C554A scanner.
• MEIR1: Infrared amplifier, 0.8 sec FFRT. Use with 48PT2 scanner.
• MEIR4: Infrared amplifier, 3 sec FFRT. Use with 48PT2 scanner.
• MERT1: Flame rectification amplifier, 0.8 sec FFRT. Use with 69ND or 45CM flame rod assemblies.

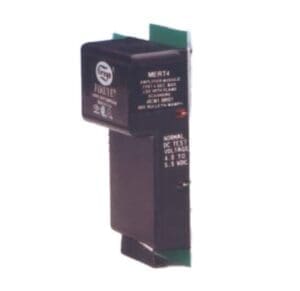

• MERT4: Flame rectification amplifier, 3 sec FFRT. Use with 69ND or 45CM flame rod assemblies.
• MEUV1: Ultraviolet amplifier, 0.8 sec FFRT. Use with UV1, UV2, or 45UV3 scanners.
• MEUV4: Ultraviolet amplifier, 3 sec FFRT. Use with UV1, UV2, or 45UV3 scanners.
• MEUVS1: Ultraviolet self-check amplifier, 0.8 sec FFRT. Use with 45UV5-1008 or 45UV5-1009 scanners.
• MEUVS4: Ultraviolet self-check amplifier, 3 sec FFRT. Use with 45UV5-1008 or 45UV5-1009 scanners.
• MEDC2: Amplifier for use with dry contact input from 85UVF-WR flame scanner, 0.30 sec FFRT.
  Use with MEP237 and 85UVF4-1QDWR, 85IRF4-1QDWR, or InSight scanner (with 59-497-020WR cable).
