Fireye Micro M Series Programmer Modules – MEPXXX

Applications & Benefits

The Fireye MicroM Programmer Modules determine burner operating sequences, trial-for-ignition (TFI) timing, purge cycles, and recycle/non-recycle functions within the MicroM flame safeguard system. They offer a wide range of options for relight, interrupted or intermittent pilot operation, flame stabilization, and post-purge control. These modules ensure flexible burner management and compliance with safety standards across many industrial applications.

Series Overview

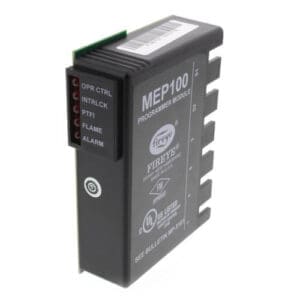

• MEP100: Relight function, 10 sec PTFI.
• MEP100P: Relight operation, 10 sec PTFI, 15 sec post purge.
• MEP101: Relight function, allows flame signal until 60 sec after interlock closes.
• MEP102: Non-recycle on flame fail, 5 sec PTFI.
• MEP103: Fixed 10 sec SISP, 10 sec MTFI, one re-try on pilot failure, 30 sec post purge.
• MEP104: Non-recycle on flame fail, 10 sec PTFI.
• MEP105: Non-recycle on flame fail, lockout on airflow open with flame present, 10 sec PTFI.
• MEP106: Relight operation, 12 sec purge, 10 sec PTFI, reset lockout on power interruption.
• MEP107: 5 sec purge, 10 sec PTFI, 5 min delay after flame failure. For natural draft burners.
• MEP108: Non-recycle, 0 sec purge, 15 sec PTFI, 10 sec post purge. No FM approval.
• MEP109: Immediate ignition and pilot after limits close, 10 sec PTFI (fixed), 10 sec MTFI, intermittent pilot, non-recycle on flame fail.
• MEP130: Relight operation, 30 sec PTFI. No agency approvals.
• MEP141: 30 sec purge, 5 sec PTFI, 15 sec post purge, prove air at start, 8 sec pilot stabilization, non-recycle.
• MEP149: 30 sec purge, 5 sec PTFI, 90 sec post purge, prove air at start, 8 sec pilot stabilization, non-recycle.
• MEP230: Selectable recycle/non-recycle, TFI timing, purge, post purge, prove open at start.
• MEP230H: Same as MEP230 with 8 sec pilot stabilization.
• MEP235: Selectable recycle/non-recycle, purge, TFI, post purge, prove open at start, lockout on airflow open after 10 sec, selectable lockout after flame proven.
• MEP236: Selectable recycle/non-recycle, purge, TFI, post purge, prove open at start, with additional 6 sec igniter on main fuel (for intermittent pilot only).
• MEP237: Selectable recycle/non-recycle, TFI timing, purge, post purge, prove open at start. Provides 0.30 sec FFRT. For Phoenix & InSight scanners with MEDC2 amplifier.
• MEP238: Selectable recycle/non-recycle, purge, TFI, post purge, prove open at start. Ignition de-energized 3 sec after pilot detected. Includes 8 sec pilot stabilization.
• MEP290: Selectable recycle/non-recycle, purge, TFI, post purge (0–90 sec), prove open at start.
• MEP300: Relight on main flame fail, lockout on PTFI & MTFI flame fail, 10 sec PTFI, 5 sec pilot proving, 5 sec MTFI.
• MEP304: 5 sec purge, 10 sec PTFI (fixed), 5 sec pilot proving, 10 sec MTFI, interrupted pilot/ignition, non-recycle.
• MEP397: 15 sec purge, interrupted ignition and pilot, non-recycle on flame fail.
• MEP437: Valve proof of closure, selectable purge, PTFI timing, intermittent or interrupted ignition, recycle/non-recycle. Reset by power interruption of manual reset.
• MEP536: Same as MEP560 without pilot stabilization. Will not lockout on airflow open during purge.
• MEP537: Same as MEP536 with one recycle on main flame fail.
• MEP560: Selectable recycle/non-recycle, purge, TFI, post purge, prove open at start, 8 sec pilot stabilization, 10 sec main trial for ignition, run-check switch.
• MEP561: Same as MEP560 with 30 sec max post purge.
• MEP562: Selectable TFI, purge, post purge, prove open at start, 8 sec pilot stabilization, 10 sec main trial, lockout on airflow loss, non-recycle, run-check switch.
• MEP564: Same as MEP560 with purge timings 7:30, 60, and 240 sec (4 minutes).
• MEP696: Selectable PTFI, baud rate, and recycle/non-recycle operation. For MEC320TS chassis only.
• MEP697: Selectable TFI, purge, post purge, prove open at start, recycle/non-recycle. Includes 5 sec pilot proving, early spark termination, 10 sec MTFI, interrupted pilot.
