Fireye Micro M Series Chassis – MECXXX

Need help selecting your product?

Send an Email Call (804) 550-7143
Starts at $646 Vendor: Fireye

Applications & Benefits

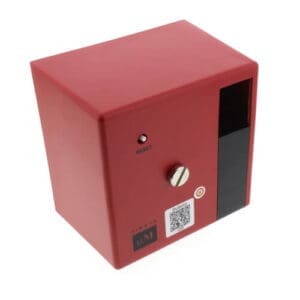

The Fireye MicroM Chassis (MEC Series) are the base flame safeguard controls that accept plug-in programmer and amplifier modules to create a complete burner management system. These compact, microprocessor-based controls provide safe start-up, automatic ignition, flame supervision, and diagnostics for commercial and industrial burners. Options include remote reset, alphanumeric display via ED510, and Modbus/E500 communications for integration and troubleshooting.

Series Overview

  • MEC120 – 120 VAC input with standard plug-in board.
  • MEC120R – 120 VAC input with remote reset capability.
  • MEC120D – 120 VAC input with alpha-numeric display interface to ED510.
  • MEC120RD – 120 VAC input with alpha-numeric display interface to ED510 and remote reset capability.
  • MEC120C – 120 VAC input with interface to E500 Communication Interface and Modbus capability.
  • MEC120RC – 120 VAC input with remote reset capability, alpha-numeric display interface to ED510, interface to E500 Communication Interface and Modbus capability.
  • MEC230 – 230 VAC input with standard plug-in board.
  • MEC230RC – 230 VAC input with remote reset capability, alpha-numeric display interface to ED510, and Modbus capability.
  • MEC320 – 120 VAC input with standard plug-in board.
  • MEC320R – 120 VAC input with remote reset capability.
  • MEC320D – 120 VAC input with alpha-numeric display interface to ED510.
  • MEC320RD – 120 VAC input with alpha-numeric display interface to ED510 and remote reset capability.
  • MEC320C – 120 VAC input with interface to E500 Communication Interface and Modbus capability.
  • MEC320RC – 120 VAC input with remote reset capability, alpha-numeric display interface to ED510, interface to E500 Communication Interface and Modbus capability.
  • MEC320TS – 120 VAC input with display interface to ED510, Modbus interface, and auxiliary relay output with dry contact for controller interface (MED8).
  • MEC480 – 230 VAC input with standard plug-in board.
  • MEC480RC – 230 VAC input with remote reset capability, alpha-numeric display interface to ED510, and Modbus capability.

Documentation

Application Diagrams
Manuals
Presentations
Product Overview
Product Specifications
Service Guide
Technical Instructions
Wiring Diagrams
