Overview

The Fireye 95DSS3 InSight II Flame Scanner supports multiple display and interface options for monitoring and configuration. These options provide flexibility in setup, operation, and maintenance of the scanner system in industrial burner applications.

Display & Interface Options

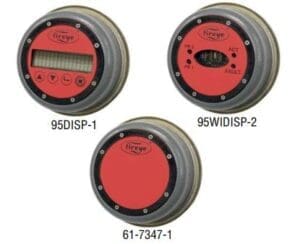

  • 95DISP-1 – Two-line by sixteen-character alpha-numeric Vacuum Fluorescent Display (VFD) with five pushbutton keypad. Installed by the user onto the end of the standard scanners.
  • 95DISP-1-SS – Factory-installed stainless steel version of the 95DISP-1, included on the 95DSS3-1CEXSS and 95DSS3-1CEX-2 scanners.
  • 95WIDISP-2 – Infrared Transmitter Module with four LED indicators, used for programming the 95DSS3 scanner via the Fireye 95WIHH-2 Wireless Handheld Commissioning Tool.
  •  Blank Cover – Required when neither the 95DISP-1 nor the 95WIDISP-2 is installed. Maintains environmental ratings and provides a sealed cover for the scanner housing.

Applications & Benefits

  • Allows direct on-scanner programming and diagnostics via display/keypad (95DISP-1).
  • Stainless steel option available for enhanced durability in demanding environments (95DISP-1-SS).
  • Enables wireless setup and configuration when paired with the 95WIHH-2 handheld tool (95WIDISP-2).
  • Maintains environmental protection when display modules are not installed (61-7347-1 Blank Cover).
