Fireye MB Flame Sensor Modules

Need help selecting your product?

Send an Email Call (804) 550-7143
Starts at $615 Vendor: Fireye

Overview

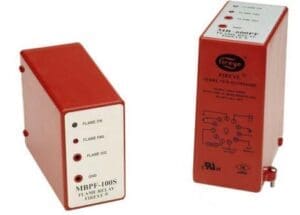

The Fireye MBPF Series Flame Sensor Modules are designed to provide reliable flame detection using UV, self-check UV, or flame rectification (FR) methods. These modules operate with the stand-alone wiring base (60-2726) and are supported by a full line of accessories including mounting rails, UV scanners, and flame rods. The MB-600PF model allows integration with MB-600S multiburner programming modules, making the system highly adaptable for industrial combustion monitoring.

Applications & Benefits

  • Provides dependable UV, self-check UV, or flame rectification detection.
  • Designed for use with stand-alone wiring base 60-2726.
  • Compatible with Fireye scanners and flame rods for complete system flexibility.
  • Optional MB-600PF module enables multi-burner programming applications.
  • Rugged construction suitable for industrial burner environments.

Series Models

  • MBPF-100S – Single channel module, 120 VAC 50/60 Hz, use with UV detection or flame rod (Obsolete Eclipse part 49700). For use with stand-alone wiring base (60-2726).
  • MBPF-200S – Single channel module, 220 VAC 50/60 Hz, use with UV detection or flame rod (Obsolete Eclipse part 49703). For use with stand-alone wiring base (60-2726).
  • MBPF-202S – Single channel module, 220 VAC 50/60 Hz, use with UV detection or flame rod. Includes 2-second Flame Failure Response Time (FFRT). For use with stand-alone wiring base (60-2726).
  • MB-600PF – Single channel module, 120 VAC 50/60 Hz, use with UV detection or flame rod. Mounting ears provided for use with MB-600S multiburner programming module.

Associated Parts

Wiring Base

  • 60-2726 – Socket, 11-pin, DIN rail or panel surface mounting.
  • 129-172 – Retaining kit, secures module on socket 60-2627.

Mounting Rails

  • 60-2539-12 – DIN style mounting rail, 12″, mounts up to 4 modules.
  • 60-2539-24 – DIN style mounting rail, 24″, mounts up to 8 modules.
  • 60-2539-36 – DIN style mounting rail, 36″, mounts up to 12 modules.

Scanners

  • UV7A4 – Ultraviolet scanner, non-self-check applications, 1/2″ NPT mount, 4′ lead with insulating coupling.
  • UV7A4W – Ultraviolet scanner, non-self-check applications, NEMA 4, 1/2″ NPT mount, 4′ lead with insulating coupling.
  • UV7R4 – Ultraviolet scanner, non-self-check applications, 1/2″ NPT, 90°, 6′ lead with insulating coupling.
  • UV7SC – Ultraviolet scanner, self-check applications, 120 VAC, 1″ NPT mount (MBPF-100S only).
  • 59-504-010 – Cable/connector for self-check scanner, 10′ foot length.

Flame Rods

  • 69ND1-1000K4 – Flame rod, 1/2″ NPT mount, 12″ length.
  • 69ND1-1000K6 – Flame rod, 1/2″ NPT mount, 18″ length.
  • 69ND1-1000K8 – Flame rod, 1/2″ NPT mount, 21″ length.

Documentation

Manuals
Technical Instructions
